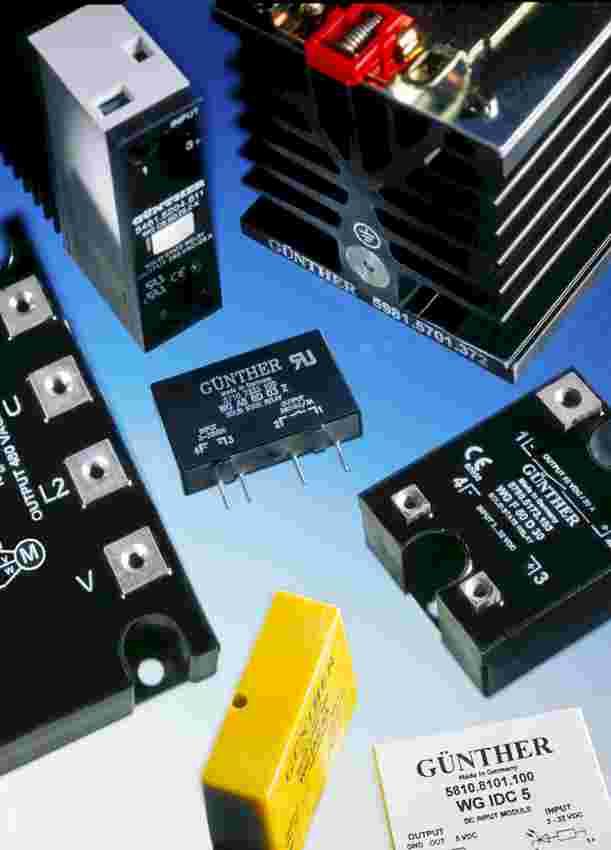

SOLID STATE RELAYS

 1-phase for AC loads and PCB mounting

SSR  type - WG A4 6D 02 Z - WG A8 6D 03 Z WG A8 6D 03 R - -
Switching type - zero cross - zero cross random - -
Approvals - none - UL UL - -
Circuit diagrams dimensions - page 41 +42 - page 41 +42 page 41 +42 - -
Output - triac - triac triac - -

Application fields

 - resistive loads - resistive loads inductive loads - -
inductive loads - inductive loads - - -
with cos > 0,85 - with cos > 0,85 - - -
Control voltage range [V] 3 - 32 DC - 3 - 32 DC 3 - 32 DC - -
Control current max [mA] 14 - 14 14 - -
Turn-off voltage mm [VDC] 1 - 1 1 - -
Input resistance [Ohm] constant current - constant current constant current - -
Output circuit
Load voltage range [V rms] 24 - 280 AC - 24 - 280 AC 24 - 280 AC - -
Peak-off-state voltage [Vdrm] 600 - 600 600 - -
Off-state leakage current [mA.eff] max. 2 - 5 5 - -
Load current range [A rms] 0,01-2 - 0,05-3 0,05-3 - -
Surge curr. 1 half wave [A peak] 100 - 100 100 - -
I²t for fusing [A²S] 50 - 50 50 - -
On-state voltage [V peak] 1,6 - 1,6 1,6 - -
Off-state (static) dv/dt [V/µs] 200 - 200 200 - -
Snubber [Ohm; nF] 100 ; 10 - 47 ; 22 47 ; 22 - -
General data
Turn-on time max [ms] 11 - 11 0,1 - -
Turn-off time max [ms] 11 - 11 11 - -
Line frequency range [Hz] 47-63 - 47-63 47-63 - -
Isolation volt between
- input/output [V rms] 4.000 - 4.000 4.000 - -
- input-output/base [V rms] — - — — - -
Isolation resistance [MOhm] 50 - 50 50 - -
Operating temperature [°C] -20...+80 - -20...+80 -20...+80 - -
Recommended varistor - SIOV-S14K230 - SIOV-S14K230 SIOV-S14K230 - -

SOLID STATE RELAYS

1-phase for AC loads and PCB mounting

SSR type - WG A8 6D 05 Z WG A8 6D 05 R WG A8 12D 05 Z WG A8 12D 05 R - WG A8 6 05 PC
Switching type - zero cross random zero cross random - phase  control
Approvals - none none VDE VDE - none
Circuit diagrams

 dimensions

 - page

41+42

 page

41 + 42

 page

41 + 42

 page

41 + 42

 - page

 41+42
Output - triac triac alternistor alternistor - triac
Application fields - resistive   loads inductive loads resistive loads inductive loads - softstart
- - inductive  loads - inductive loads - - and
- -      with cos     >0, 85 - with cos > 0, 85 - - phase  control

Input circuit
Control

voltage range

 [V] 3 - 32 DC 3 - 32 DC 3 - 32 DC 3 - 32 DC supply

voltage

 3 - 32 DC
Control

current max

 [mA] 14 14 22 22 supply

current

 max 1 mA
Turn off

 voltage mm

 [VDC] 1 1 1 1 control

voltage

 0,6 - 40 VDC
Input resistance [Ohm] constant

current

 constant

current

 constant

current

 constant

current

 control

current

 0-5 mA

Output circuit
Load

voltage range

 [V rms] 24 - 280 AC 48 - 280 AC 24 - 480 AC 48 - 480 AC - 140 - 280 AC
Peak-off-state

 voltage

 [V drm] 600 600 1200

(1000 )

 1200

(1000 )

 - 600
Off state leakage

current

 [mAeff] max 8 8 5 5 - 8
Load

current range

 [A rms] 0,1 -5 0,1 -5 0,1 -5 0,1 -5 - 0,1-5
Surge curr.

 1 half wave

 [A peak] 100 100 120 120 - 100
I²t for fusing [A²s] 50 50 72 72 - 50
On-state voltage [V peak] 1,6 1,6 1,6 1,6 - 1,6
Off-state (static)

 dv/dt

 [V/µs] 200 200 200 200 - 200
Snubber [Ohm : nF] 47 ; 47 47 ; 47 47 ; 10 47 ; 10 - none

General data                                       * integrated overvoltage protection effective above 1000 V
Turn-on time max [ms] 11 0,1 11 0,1 - controllable
Turn-off time max [ms] 11 11 11 11 - 11
Line

frequency range

 [Hz] 47...63 47...63 47...63 47...63 - 47...63
Isolation

volt between

 - - - - - - -
- input/output [V rms] 4.000 4.000 4.000 4.000 - 4.000
- input-output

/base

 [V rms] — — — — — —
Isolation

 resistance

 [MOhm] 50 50 50 50 - 50
Operating

 temperature

 [°C] -20...+80 -20...+80 -20...+80 -20...+80 - -20...+80
Recommended

varistor

 Siemens SIOV-

S14K230

 SIOV-

S14K230

 SIOV-

S14K230

 SIOV-

S14K230

 - SIOV-

S14K230
